Flange Guards

Unlock the advantages of our Flange Guards, meticulously designed and manufactured to ensure the extraordinary protection of industrial pipeline systems against leaks and spray-outs. With over 13.0 years of remarkable expertise as a manufacturer, supplier, and trader, we present a wide range that includes SS304-SS316 Flange Guards, PP Flange Guards, UV Resistant HDPE Flange Guards, PTFE Lined Bellow, and PP Box Type Flange Guards, catering to diverse industrial needs with superior precision. Offering all-India supply capability, our flange guards are engineered to deliver astounding resistance to corrosive chemicals, UV rays, and extreme environmental conditions-making them a hot deal for safety-conscious businesses. These guards are personalized to perfection, offering a marvelous combination of strength and flexibility, while their quick and easy installation process ensures zero downtime. Witness the unparalleled durability and reliability as our PP Box Type and UV Resistant HDPE Flange Guards outperform traditional options for long-lasting security, while the PTFE Lined Bellow provides an extraordinary solution for high-temperature applications. This premium selection, delivered with competitive pricing and occasional discounts to enhance value, ensures that your operational safety is never compromised. Experience the astounding benefits of our flange guards tailored to safeguard your industrial processes effectively and efficiently!

UV Resistant HDPE Flange Guards

MOQ : 10 Pieces

  • Application
  • other, Chemical, Oil & Gas, Water Treatment, Pharmaceutical Industries
  • Bend Radius
  • Suitable for Common Flange Sizes
  • Coating Type
  • UV Resistant Coating
  • Color
  • Yellow
  • Connection
  • Other, Velcro/Strap-On Fastening
  • Connection Type
  • Removable/Reusable Fastening
  • Diameter
  • 25 mm-600 mm
  • Flexibility
  • Flexible
  • Length
  • Customizable (Standard: 150 mm-450 mm)
  • Material
  • Other , UV Resistant High-Density Polyethylene (HDPE)
  • Material Grade
  • PE100 HDPE-UV Resistant
  • Outer Diameter
  • Up to 600 mm
  • Product Type
  • Other, Flange Guard
  • Rated Pressure
  • Up to 25 Bar
  • Sealing Type
  • Non-sealing, Prevents Direct Leaks/Spray Outs
  • Section Shape
  • Other, Flat Band
  • Shape
  • Other, Cylindrical Wrap
  • Standard
  • Other, DIN/ANSI/ASME compatible
  • Surface Treatment
  • Other, UV Stabilized Finish
  • Temperature Range
  • -20C to +70C
  • Tensile Strength
  • 32 MPa
  • Thickness
  • 2 mm
  • Tolerance
  • 0.2 mm
  • Usage
  • Protection of Flange Joints from Spray Out
  • Yield Strength
  • 28 MPa

PP Flange Guards

MOQ : 10 Pieces

  • Application
  • other, Chemical, Pharmaceutical, Oil & Gas, Water Treatment Plants
  • Bend Radius
  • High
  • Coating Type
  • Uncoated
  • Color
  • White / Natural
  • Connection
  • Other, Wrap Around Fastening
  • Connection Type
  • Non-Permanent
  • Diameter
  • 1 inch to 24 inch
  • Flexibility
  • Flexible
  • Length
  • As per Flange Size
  • Material
  • Other , Polypropylene (PP)
  • Material Grade
  • Virgin PP
  • Outer Diameter
  • Up to 600 mm
  • Product Type
  • Other, Flange Guard
  • Rated Pressure
  • Up to 16 Bar
  • Sealing Type
  • Splash Containment
  • Section Shape
  • Other, Circular
  • Shape
  • Round
  • Standard
  • Other, ASTM / DIN / ANSI
  • Surface Treatment
  • Other, Plain Finish
  • Temperature Range
  • -20C to +90C
  • Tensile Strength
  • 2200 PSI
  • Thickness
  • 0.3 mm - 1 mm
  • Tolerance
  • 0.2 mm
  • Usage
  • Flange Safety and Splash Protection
  • Yield Strength
  • 1900 PSI

PP Box Type Flange Guards

MOQ : 10 Pieces

  • Application
  • other, Flange Joint Protection in pipelines
  • Bend Radius
  • Flexible to fit various flange shapes
  • Coating Type
  • Uncoated
  • Color
  • Transparent or White
  • Connection
  • Other, Velcro / Hook & Loop / Lace-On
  • Connection Type
  • Wrap Around with fastening
  • Diameter
  • Range: 15mm to 600mm
  • Flexibility
  • Flexible
  • Length
  • Customized as per flange size
  • Material
  • Other , Polypropylene (PP)
  • Material Grade
  • Virgin PP Grade
  • Outer Diameter
  • Fits Flanges up to 600mm OD
  • Product Type
  • Other, Box Type Flange Guard
  • Rated Pressure
  • Up to 24 bar
  • Sealing Type
  • Overlap with Velcro Closure
  • Section Shape
  • Other, Box
  • Shape
  • Other, Rectangular/Box
  • Standard
  • Other, ASTM D4101 / IS 10910
  • Surface Treatment
  • Other, Plain / Smooth Finish
  • Temperature Range
  • -20C to +90C
  • Tensile Strength
  • ~32 MPa (PP Typical)
  • Thickness
  • 2 mm (customizable)
  • Tolerance
  • 0.5 mm
  • Usage
  • Prevention of chemical spray or splash
  • Yield Strength
  • ~30 MPa

SS304-SS316 Flange Guards

MOQ : 10 Pieces

  • Application
  • other, Pipeline and process industry flange protection
  • Bend Radius
  • As per flange size
  • Coating Type
  • Uncoated Stainless Steel
  • Color
  • Metallic Silver
  • Connection
  • Other, Wrap Around Flange
  • Connection Type
  • Velcro/Drawstring or Fastening Clips
  • Diameter
  • 1 to 24 and custom
  • Flexibility
  • Flexible Strap Design
  • Length
  • Customized as required
  • Material
  • Other , Stainless Steel (SS304 / SS316)
  • Material Grade
  • SS304, SS316
  • Outer Diameter
  • Up to 600 mm (custom sizes available)
  • Product Type
  • Other, Flange Guard
  • Rated Pressure
  • Up to 40 bar
  • Sealing Type
  • Overlap Closures
  • Section Shape
  • Other, Rectangular Strip
  • Shape
  • Other, Band (Wrap-Around)
  • Standard
  • Other, ASTM / ASME / DIN / ISO
  • Surface Treatment
  • Other, Polished / Brushed Finish
  • Temperature Range
  • -40C to +350C
  • Tensile Strength
  • >515 MPa (SS304), >520 MPa (SS316)
  • Thickness
  • 0.20 mm to 1.0 mm
  • Thread Type
  • Non-threaded
  • Tolerance
  • 0.10 mm
  • Usage
  • Safety for flanged joints against spray-outs & leaks
  • Yield Strength
  • >205 MPa

PTFE Coated Fiber Glass Flange Shilds

MOQ : 10 Pieces

  • Application
  • other, Chemical, Petrochemical, Pharmaceutical, Food Processing, Oil & Gas
  • Bend Radius
  • Flexible - Adapts to Flange Curvature
  • Coating Type
  • PTFE (Polytetrafluoroethylene)
  • Color
  • White / Off White
  • Connection
  • Other, Velcro / Drawstring Closure
  • Connection Type
  • Reusable Ties / Hook & Loop
  • Diameter
  • Customizable (based on flange size)
  • Flexibility
  • High Flexibility (Reusable)
  • Length
  • Custom cut as per flange size
  • Material
  • Other , PTFE Coated Fiber Glass
  • Material Grade
  • Premium Industrial Grade
  • Outer Diameter
  • Customizable (commonly 50 mm to 1000 mm)
  • Product Type
  • Other, Flange Shield
  • Rated Pressure
  • Up to 150 psi
  • Sealing Type
  • Wrap-around / Overlap Sealing
  • Section Shape
  • Other, Circular
  • Shape
  • Round
  • Standard
  • Other, ASTM / DIN
  • Surface Treatment
  • Other, PTFE Coated
  • Temperature Range
  • -70C to +260C
  • Tensile Strength
  • 2000 N/50 mm
  • Thickness
  • 0.25 mm to 1 mm
  • Tolerance
  • 0.5 mm
  • Usage
  • Flange Leak Containment and Spray Shielding

SS304 Box Type Flange Guards

MOQ : 10 Pieces

  • Application
  • other, Oil & Gas, Chemical, Pharmaceutical Industries
  • Bend Radius
  • N/A (Rigid Construction)
  • Coating Type
  • No additional coating
  • Color
  • Silver / Metallic
  • Connection
  • Other, Bolt-On / Clamp-On
  • Connection Type
  • Mechanical Fixing / Bolted
  • Diameter
  • As per Flange Specification
  • Flexibility
  • Rigid
  • Length
  • Customizable as per flange size
  • Material
  • Stainless Steel
  • Material Grade
  • SS304
  • Outer Diameter
  • Customizable as per flange OD
  • Product Type
  • Other, Box Type Flange Guard
  • Rated Pressure
  • Up to 40 bar
  • Sealing Type
  • Not applicable, mechanical barrier
  • Section Shape
  • Other, Boxed / Enclosed
  • Shape
  • Other, Rectangular Box
  • Standard
  • Other, ASTM A240 / ASME SA240
  • Surface Treatment
  • Other, Polished / Brushed
  • Temperature Range
  • -40C to +300C
  • Tensile Strength
  • 515 MPa min
  • Thickness
  • 1 mm to 2 mm
  • Tolerance
  • 0.2 mm
  • Usage
  • Flange Protection / Spray Out Prevention
  • Yield Strength
  • 205 MPa min

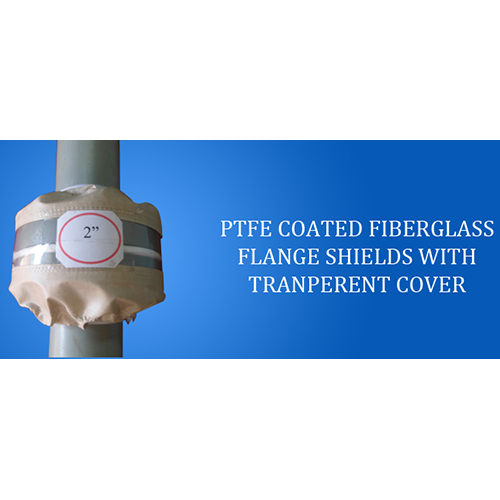

PTFE Coated Fiber Glass Flange Guards With Transparent Cover

MOQ : 10 Pieces

  • Application
  • other, Acid, Chemical, and Caustic Flange Joints
  • Bend Radius
  • Flexible, fits various flange sizes
  • Coating Type
  • PTFE (Polytetrafluoroethylene)
  • Color
  • White (Transparent Cover)
  • Connection
  • Other, Velcro & Draw Cord
  • Connection Type
  • Removable
  • Diameter
  • As per Flange Size
  • Flexibility
  • Flexible
  • Length
  • Customized
  • Material
  • Other , PTFE Coated Fiber Glass
  • Material Grade
  • Virgin PTFE Coated Glass Fabric
  • Outer Diameter
  • Up to 1200 mm
  • Product Type
  • Other, Flange Guard
  • Rated Pressure
  • Up to 40 Bar
  • Sealing Type
  • Splash Containment / Leak Indication
  • Section Shape
  • Other, Flat
  • Shape
  • Other, Round/Circular
  • Standard
  • Other, ASTM / DIN / ANSI
  • Surface Treatment
  • Other, PTFE Coated
  • Temperature Range
  • -70C to +260C
  • Tensile Strength
  • > 200 N/10mm
  • Thickness
  • 0.5 mm - 2 mm
  • Tolerance
  • +/- 0.5 mm
  • Usage
  • Flange Safety Protection

PTFE Lined Bellow

MOQ : 10 Pieces

  • Application
  • other, Corrosive fluid transfer, connection in piping systems
  • Bend Radius
  • Standard: 3 x Nominal Diameter
  • Coating Type
  • Epoxy or Powder Coated
  • Color
  • White (Lining), Blue (Outer) / Custom on request
  • Connection
  • Other, Flanged
  • Connection Type
  • Drilled Flange (as per DIN/ANSI/BS/JIS)
  • Diameter
  • 50 mm to 600 mm
  • Flexibility
  • High Flexibility, Compensates misalignment
  • Length
  • 100 mm to 3000 mm
  • Material
  • Other , Mild Steel with PTFE Lining
  • Material Grade
  • Virgin PTFE lining, IS 2062 MS body
  • Outer Diameter
  • 50 mm to 600 mm
  • Product Type
  • Other, PTFE Lined Bellow
  • Rated Pressure
  • up to 10 bar
  • Sealing Type
  • PTFE Gasket or Integrated PTFE Flange Face
  • Section Shape
  • Other, Circular
  • Shape
  • Other, Cylindrical
  • Standard
  • Other, ASTM F1545 / DIN 2848
  • Surface Treatment
  • Other, Painted / Powder Coated
  • Temperature Range
  • -25C to +180C
  • Tensile Strength
  • 210 kg/cm2 (PTFE lining)
  • Thickness
  • 5-10 mm
  • Thread Type
  • N/A (Flanged connection)
  • Tolerance
  • 0.5 mm
  • Usage
  • Chemical and Pharmaceutical Industry
  • Yield Strength
  • 120 kg/cm2 (PTFE lining)
